![](/file_thumbnail/thumb_250117013518.png)
KiCAD
다운로드수 4
-
(0명)
분류 | 그래픽 및 디자인 |
---|---|
버전 | 버전 1.1.7 |
업데이트 | 2025년 1월 7일 |
용량 | 6.7MB |
앱결제 | ₩3,300 |
OS | iPhone: iOS 13.0 이상 필요 / iPad: iPadOS 13.0 이상 필요 / |
디자인 | iPad용으로 디자인됨 |
금주 다운수 | 1 |
누적 다운수 | 4 |
다운로드 | |
!소프트웨어 사용범위 위반 시
법적 책임을 질 수 있습니다. |
상세정보

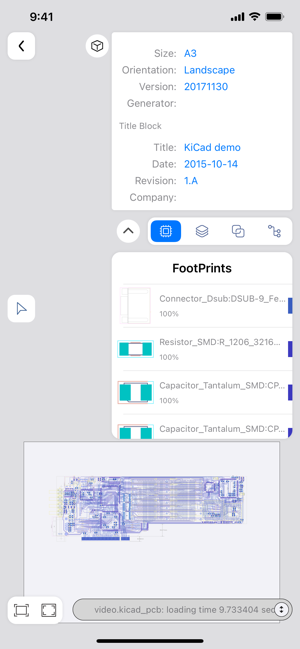

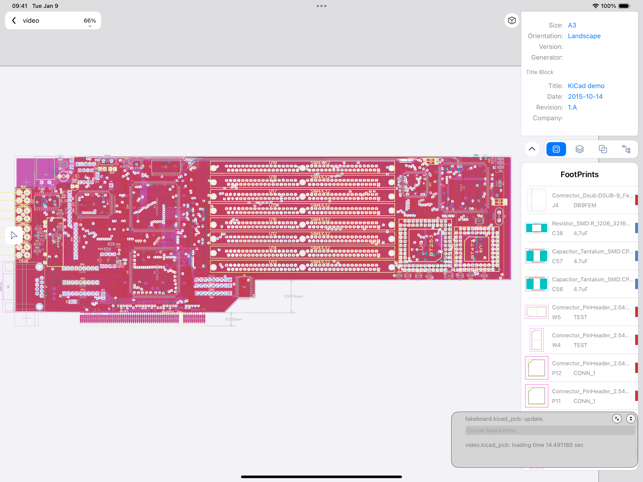

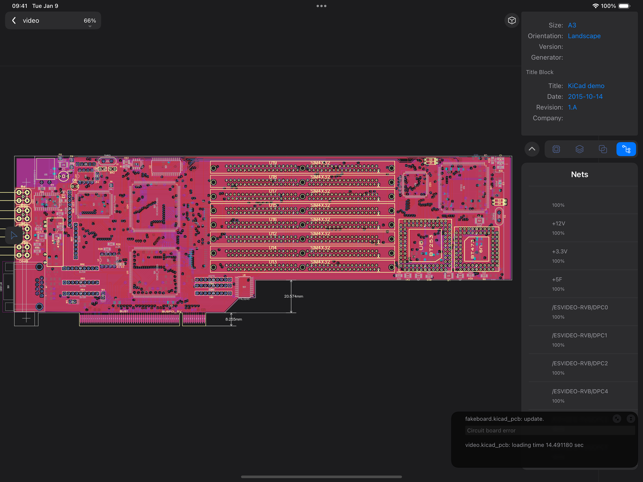

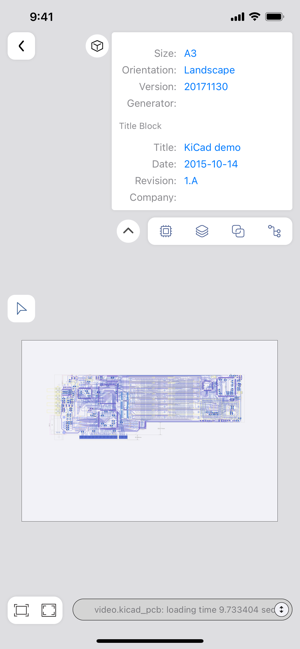

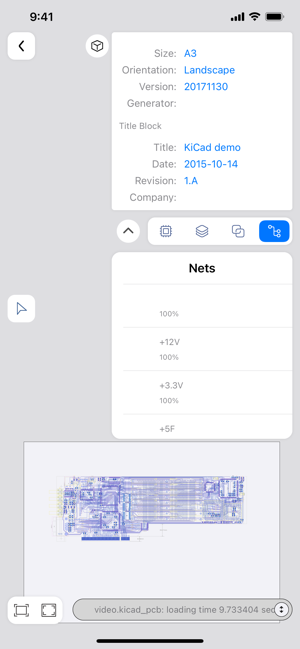

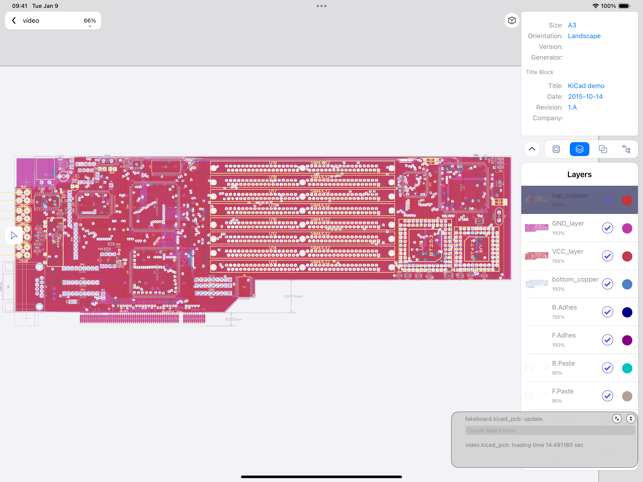

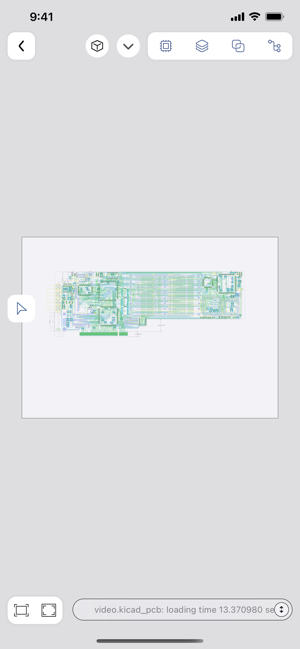

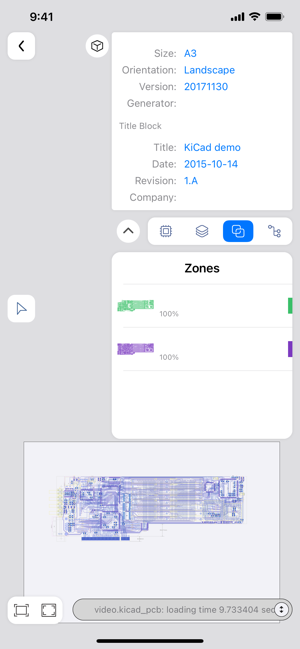

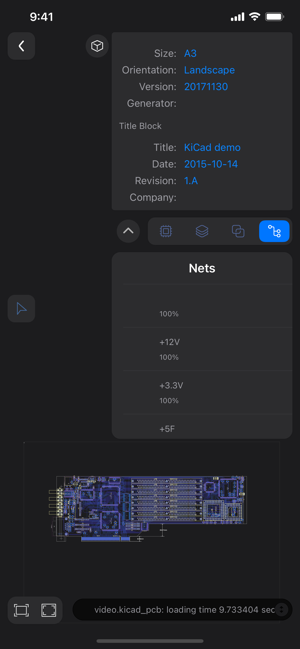

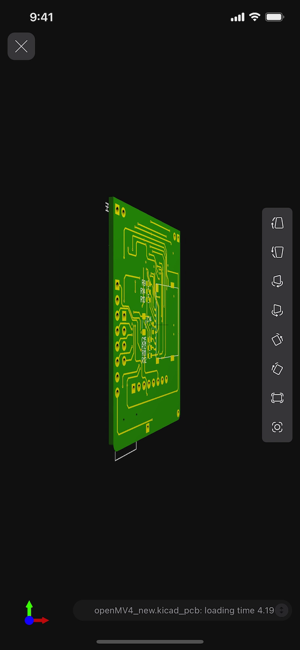

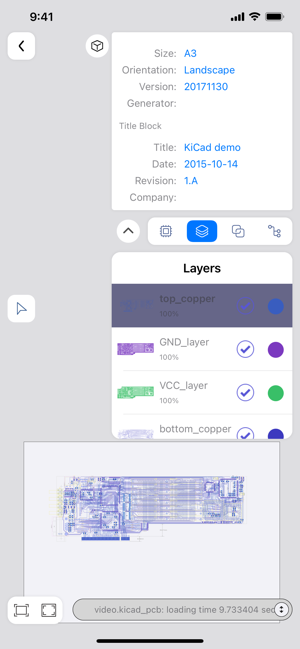

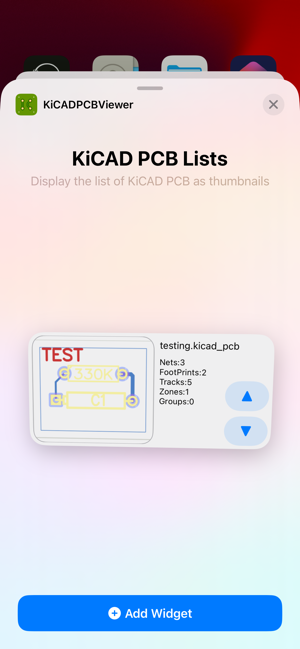

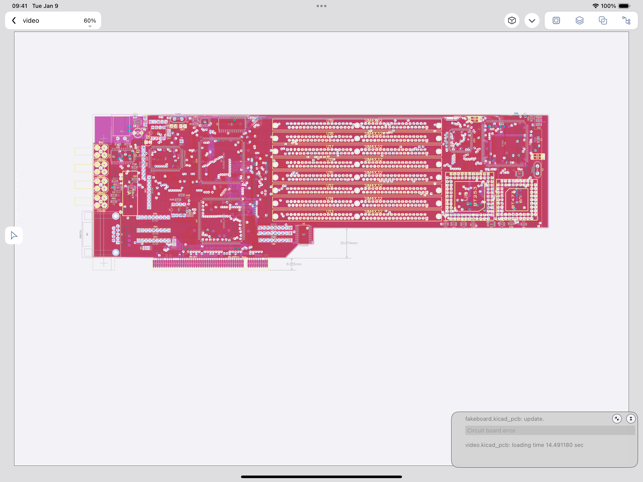

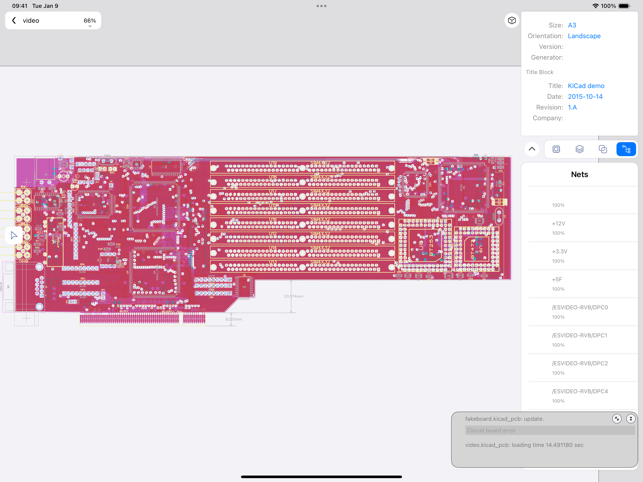

This is a lightweight APP for viewing KiCAD 3 - 8 generated pcb files in a mobile environment.No matter what questions, opinions or ideas you have, you can send an email to xjerry248@gmail.com .KiCAD PCB Viewer is a highly professional tool developed specifically for viewing and reviewing PCB design files generated by KiCAD. The tool integrates an advanced graphical interface that allows users to deeply browse PCB designs in a multi-layer view mode, supporting comprehensive analysis and verification of complex boards.Users can view the component layout, electrical connections, and signal paths of each layer in detail, and perform interactive design verification and troubleshooting. KiCAD PCB Viewer provides real-time zoom, pan, and rotation capabilities, enabling users to precisely locate and inspect every detail of the board. At the same time, the tool supports various display modes, including transparent view, high brightness display and inter-layer contrast, helping users to quickly
새로운 기능
Thank you for your feedback! New features in this release:Fixed: gr_arc is not displayed;Fixed: gr_rect parsing;Fixed: gr_circle parsing;Fixed: gr_line resolution.
저작권
©PCB Viewer
